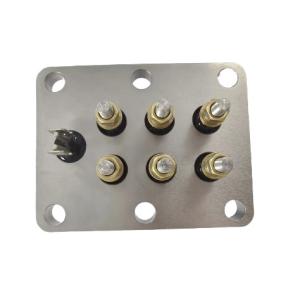

Product Description
This product is a well - engineered component, designed with a
combination of high - quality materials to meet the demands of
diverse applications. The plate, crafted from C45 steel, provides a
sturdy base with good mechanical properties. The power pin, also
made of C45 steel, is suitable for handling power - related
electrical currents. The control pin, constructed from SUH446
stainless steel, offers excellent corrosion resistance, which is
crucial for maintaining reliable electrical connections in various
environments.
ELAN #48 glass is incorporated to ensure effective insulation
between different electrical elements. The TAB, made of SPCC with
nickel plating, serves as a reliable connection point. The use of
silicone rubber provides flexibility and sealing properties, while
the H62 brass nuts and washers offer good electrical conductivity
and corrosion resistance. The 304 stainless - steel spring lock
washer ensures a secure connection, and the nickel - plated SPCC
connector plate further enhances the overall electrical
performance.
Features
| Feature | Description |
|---|
| Leak - proof Design | Passes a leak test of 4.0MPa with N2 for 1 minute without any
leakage. This ensures the product can be used in applications where
gas - tight or liquid - tight conditions are required, protecting
internal components from environmental factors. |
| High Insulator Resistance | Exhibits an insulator resistance of 2000MΩ@500VDC, effectively
isolating electrical currents and preventing short - circuits,
ensuring safe and stable electrical operation. |
| High - voltage Tolerance | The power pin withstands 3000VAC for 2 seconds with a maximum
leakage current of 0.5mA, and the control pin withstands 2000VAC
for 2 seconds with a maximum leakage current of 0.5mA, both without
breakdown or flashover. This makes the product suitable for
applications with high - voltage requirements. |
| Nickel Plated Finish | Has a nickel plating with a thickness of 2 - 4μm (except for the
TABS). Nickel plating enhances corrosion resistance, improves the
surface finish, and provides better electrical conductivity. |
| Burr - free | No burrs are permitted, ensuring smooth handling, easy assembly,
and preventing damage to other components during installation. |
| Standard Tolerance | Unless otherwise specified, follows the GB/T 1804 - m tolerance
standard, ensuring consistent and interchangeable parts. |
Technical Parameters
| Parameter | Specification |
|---|
| Plate Material | C45 Steel |
| Power Pin Material | C45 Steel |
| Control Pin Material | SUH446 Stainless Steel |
| Glass Type | ELAN #48 |
| TAB Material | SPCC, Nickel Plating |
| Rubber Material | Silicone Rubber |
| Nut M5 Material | H62 Brass |
| Washer 5 Material | H62 Brass |
| Spring Lock Washer Material | 304 Stainless Steel |
| Connector Plate Material | SPCC, Nickel Plating |
| Leak Test | 4.0MPa with N2, 1 minute, no leak |
| Insulator Resistance | 2000MΩ@500VDC |
| HI - POT Test (Power Pin) | 3000VAC, 2 seconds, max. leakage current 0.5mA |
| HI - POT Test (Control Pin) | 2000VAC, 2 seconds, max. leakage current 0.5mA |
| Nickel Plating Thickness | 2 - 4μm (except TABS) |
| Tolerance | GB/T 1804 - m |
Applications
This product can be used in a wide range of electrical systems,
such as in industrial control panels, where reliable electrical
connections, high - voltage resistance, and leak - proof properties
are essential. It can also be applied in some electrical equipment
in the automotive industry, especially in areas where there are
both power - carrying and control - signal - transmitting
requirements.
Customization
We understand that different customers may have specific
requirements. Our team is available to discuss customization
options. Whether it's adjusting the material selection according to
specific environmental or performance needs, modifying the
dimensions within the tolerance range, or changing the plating
thickness to meet particular corrosion - resistance or electrical -
conductivity demands, we can work with you to develop a customized
solution.
Support and Services
- Technical Support: Our experienced technical team is available to
provide assistance. We can help with product selection, offer
installation guidance, and troubleshoot any problems you may
encounter. Whether you have questions about the product's
compatibility with other components or need advice on system
integration, we're here to support you.
- Warranty: We offer a warranty period to cover any manufacturing
defects. If the product fails to meet the specified performance
criteria during the warranty period, we will repair or replace it
free of charge.
- After - sales Service: Our commitment to customer satisfaction
extends beyond the sale. We provide after - sales support,
including maintenance advice, supply of spare parts, and product
upgrades. We aim to ensure the long - term performance and
reliability of our products.
Packing and Shipping
- Packing: The product is carefully packaged using anti - static and
shock - absorbing materials. This packaging protects the product
from damage during handling and transportation, ensuring it reaches
you in perfect condition.
- Shipping: We work with reliable shipping carriers to offer a
variety of shipping options. You can choose the shipping method
that best suits your needs, whether it's for fast delivery or cost
- effective transportation.
FAQ
- Q: What is the material of the plate?
- A: The plate is made of C45 steel.
- Q: What is the HI - POT test voltage for the control pin?
- A: The HI - POT test voltage for the control pin is 2000VAC for 2
seconds, with a maximum leakage current of 0.5mA.
- Q: Does the product come with a warranty?
- A: Yes, we offer a warranty to cover manufacturing defects.
