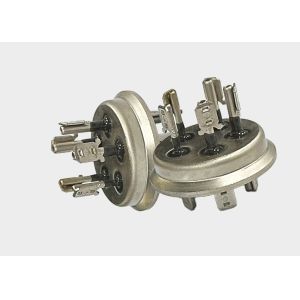

Cost-Effective Fridge Compressor Terminals - High Performance
Product Description:
- At our facility, we can customize various types of sintered seal
terminals according to customers' needs. Our produced terminals are
high in performance with the following parameters:
- Material: 45 Steel
- Hi-pot: 3000v, with a leak current ≤ 0.5MA
- Impedance Resistence (IR): 1000V, with a resistance over 1000MΩ
- Leak Test: 4MPa N2 pressure without leaks
- Burst Test: 5MPa, no leaks
- Operating Temperature Range: -70°C to 300°C
Features:
The sintered seal terminal is mainly used in automotive air
conditioning compressors with voltages ranging from 72V to 810V,
serving the purpose of both sealing and insulating the electrical
connection, as well as withstanding voltage and pressure.
Technical Parameters:
| Product Name | Specification |
|---|
| Fridge Compressor Terminals | Surface Treatment: Electroless Nickel
Voltage: 200V-400V
Operating Temperature: -70°C To +300°C
Pin: 4J28
Application: Refrigerator
Connector Type: Circlip Or Wielding
Current Rating: 20A - 30A |
Applications:
Our company only produces products that employ environmentally
friendly electroless nickel plating method. The coating thickness
ranges from 3 to 5 microns. This nickel coating does not contain
hazardous substances, such as mercury, lead, cadmium or hexavalent
chromium. It is in compliance with EU standards and exhibited SGS
environmental testing report. The purpose of our products is to
serve electrically connected purposes.
Customization:
SSCore Refrigerator Compressor Terminals from ShenZheng
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Certification: UL
- Minimum Order Quantity: 5 pcs
- Price: 10 - 40 $
- Packaging Details: Cato packing
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Surface Treatment: Electroless Nickel
- Connector Type: Circlip Or Wielding
- Operating Temperature: -70°C To +300°C
- Current Rating: 20A - 30A
- Product Name: Fridge Compressor Terminals
Support and Services:
Fridge Compressor Terminals offers a variety of technical support
and service options to meet the needs of our customers. Our team of
experienced technicians is available to provide assistance with
product installation, troubleshooting, and repairs. We also offer
extended warranties on all of our products to ensure that your
purchase is protected against any unforeseen issues. If you have
any questions or concerns, please don’t hesitate to contact our
support team for assistance.
